Cat/Ariel Packages For Oklahoma Compressor Station

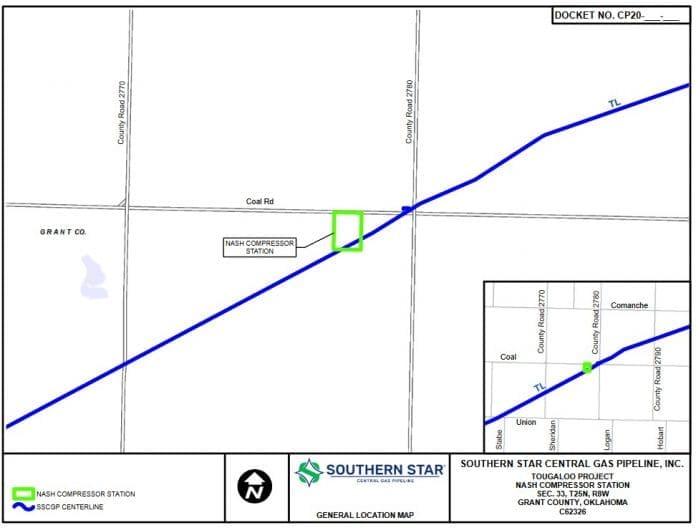

Mapa por cortesía de Southern Star Central Gas Pipeline Inc.

Southern Star Central Gas Pipeline Inc. (Southern Star) is seeking US Federal Energy Regulatory Commission (FERC) approval to construct, operate, and maintain the Nash Compressor Station (Nash CS) and other appurtenant facilities as part of its Tougaloo Project, located in Grant County, Oklahoma, USA. The purpose of the project will be to create up to 40,000 dekatherms per day of firm production area transportation capacity on Southern Star’s CB line.

Nash CS will house two skid-mounted, 1875-hp (1399-kW), Caterpillar 3606 A4 / Ariel JDG compressor packages for a total of 3750 hp (2798 kW); a motor control center building; a 235-hp (175-kW) standby emergency generator; one horizontal slug separator; two 500-gallon lube oil tanks; two 500-gallon glycol tanks; two 100-barrel fiberglass storage tanks for condensate and wastewater; a fuel gas regulating skid; and miscellaneous ancillary equipment and piping.
